Explosion Proof Fixed THT Gas Detector With RS485 Modbus And 4-20mA Output Gas Monitor

Brand Name : Safegas

Model Number : YT-95H

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 1120USD

Payment Terms : T/T

Supply Ability : 1000 PCS/Day

Delivery Time : 3-10 Days

Packaging Details : Carton

Product Name : Gas Detector

Gas : THT

Measure Range : 0-100mg/m3

Resolusion : 0.1mg/m3

Explosionproof Grade : Ex D IIC T6 Gb

Humidity : 0-95%RH(nocondensation)

Language : Chinese and English

Size : 180×150×90mm

Weight : ≤1.6kg

Power : 12-36V DC

Detection Principle : Specified According To Application

Connection Mode : G1/2 External Thread Explosion-proof Flexible Pipe

Contact Now

Explosion Proof Fixed THT Gas Detector with Display RS485 Modbus 4-20mA Output Gas Monitor

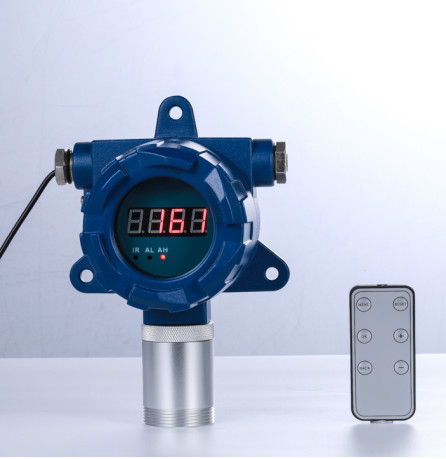

YT-95H Fixed THT Gas Detector

High-precision Fixed THT Gas Detector with diffusion detection principle, designed for industrial safety applications.

Product Overview

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. A 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol makes it compatible with most control systems. Third-party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.

Key Features
  • Online monitoring with sound/light alarm (Optional) - 24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable
  • Non-contacted control the device - With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
  • Variety of installation methods - 4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
  • Data transmission - Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional)
  • High quality case - Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof
Technical Specifications
Gas Detected THT
Detection Principle Electrochemical
Measure Range 0-100mg/m³
Resolution 0.1mg/m³
Accuracy ≤±2-5%FS (depending on the specific sensor)
Response Time (T90) 15-30s (depending on the specific sensor)
Repeatability ≤±1%
Zero Shift ≤±1% (F.S./year)
Display 4 digits Nixie tube display
Connection Mode G1/2 external thread explosion-proof flexible pipe
Thread Size M45*2mm
Temperature -20℃ ~ 50℃
Humidity 0-95%RH (no condensation)
Material Case Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power 12-36V DC
Dimensions 180*150*90mm
Weight ≤1.6kg
Explosion-proof Grade Ex d IIC T6 Gb
Product Images
Explosion Proof Fixed THT Gas Detector With RS485 Modbus And 4-20mA Output Gas Monitor Explosion Proof Fixed THT Gas Detector With RS485 Modbus And 4-20mA Output Gas Monitor Explosion Proof Fixed THT Gas Detector With RS485 Modbus And 4-20mA Output Gas Monitor Explosion Proof Fixed THT Gas Detector With RS485 Modbus And 4-20mA Output Gas Monitor Explosion Proof Fixed THT Gas Detector With RS485 Modbus And 4-20mA Output Gas Monitor
Company Advantages
  • R&D team experience: over 25 years
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx, ATEX, CE
  • Delivery time: 5-7 days
  • Annual capacity: 80,000 units
  • Professional 7*24 hours customer service
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counter:

  • Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
  • Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controllers: YT-1100H, YT-1600H, YT-1800H
  • Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
